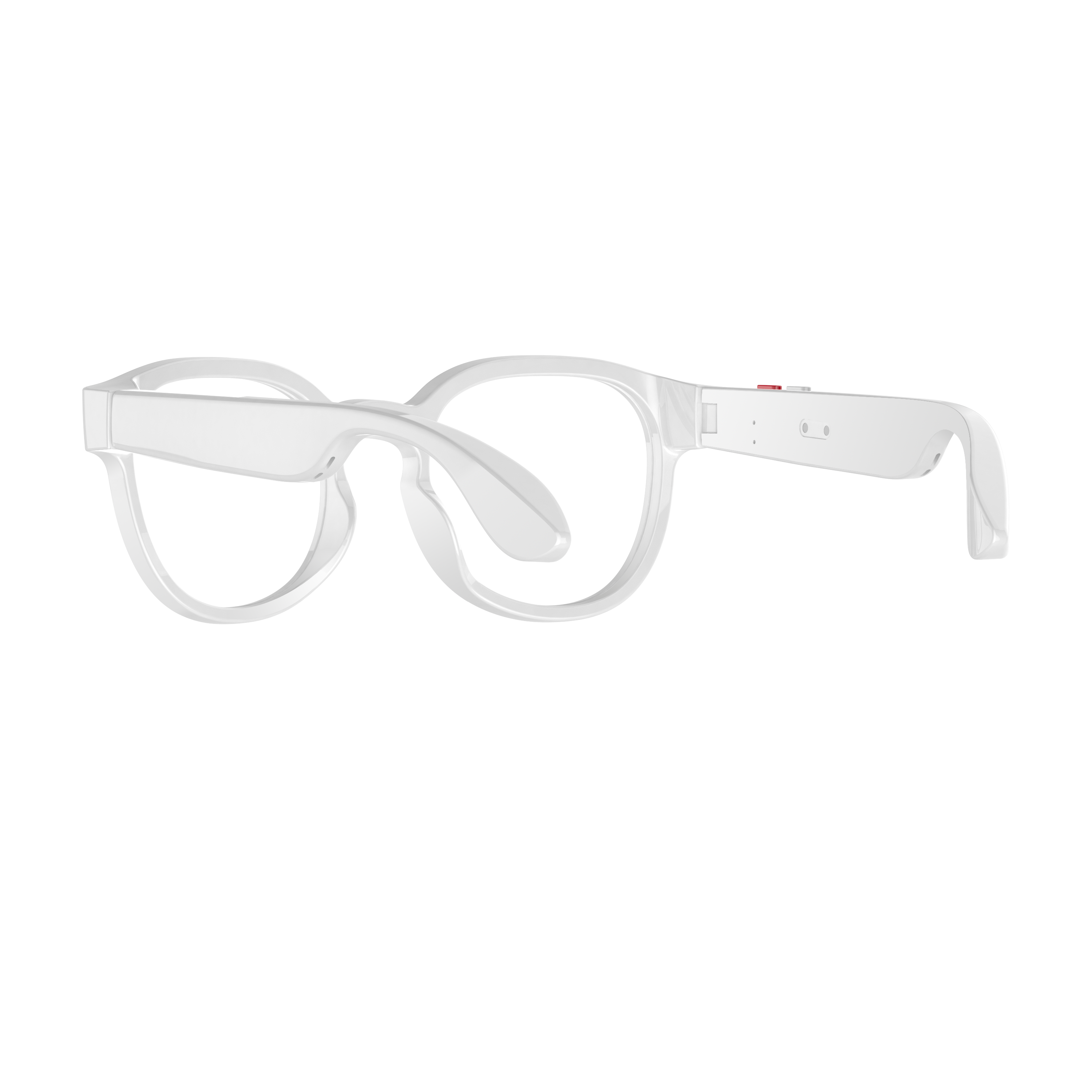

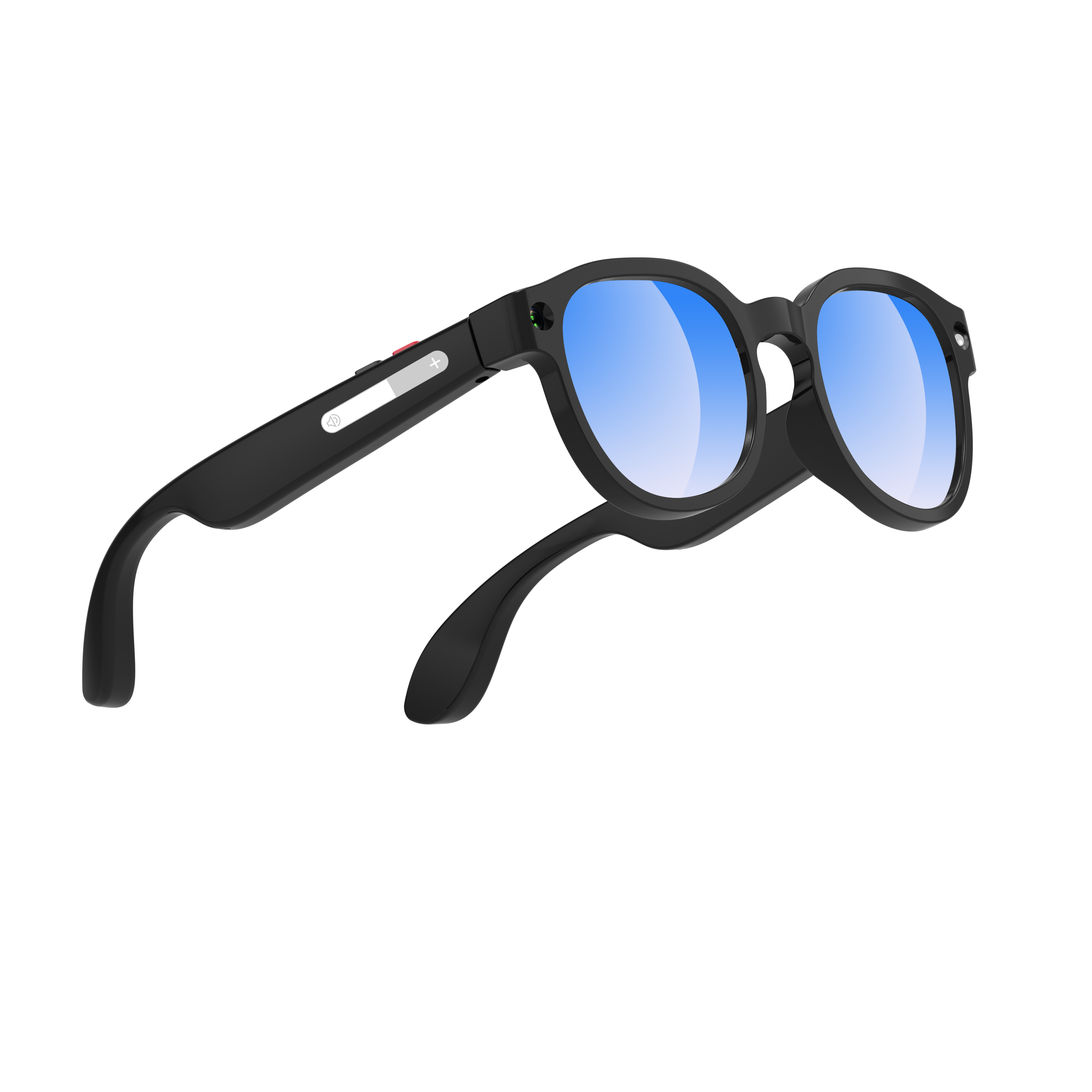

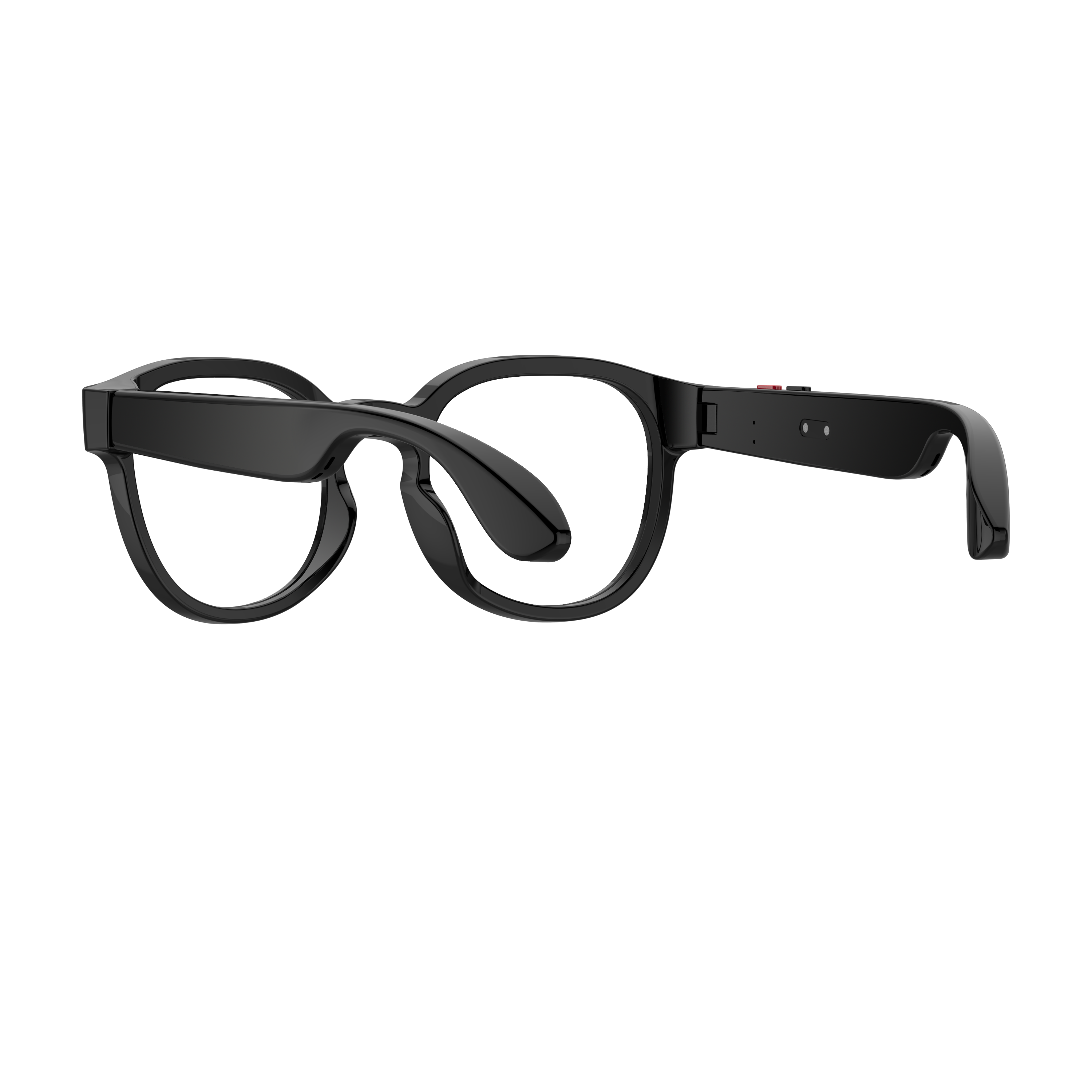

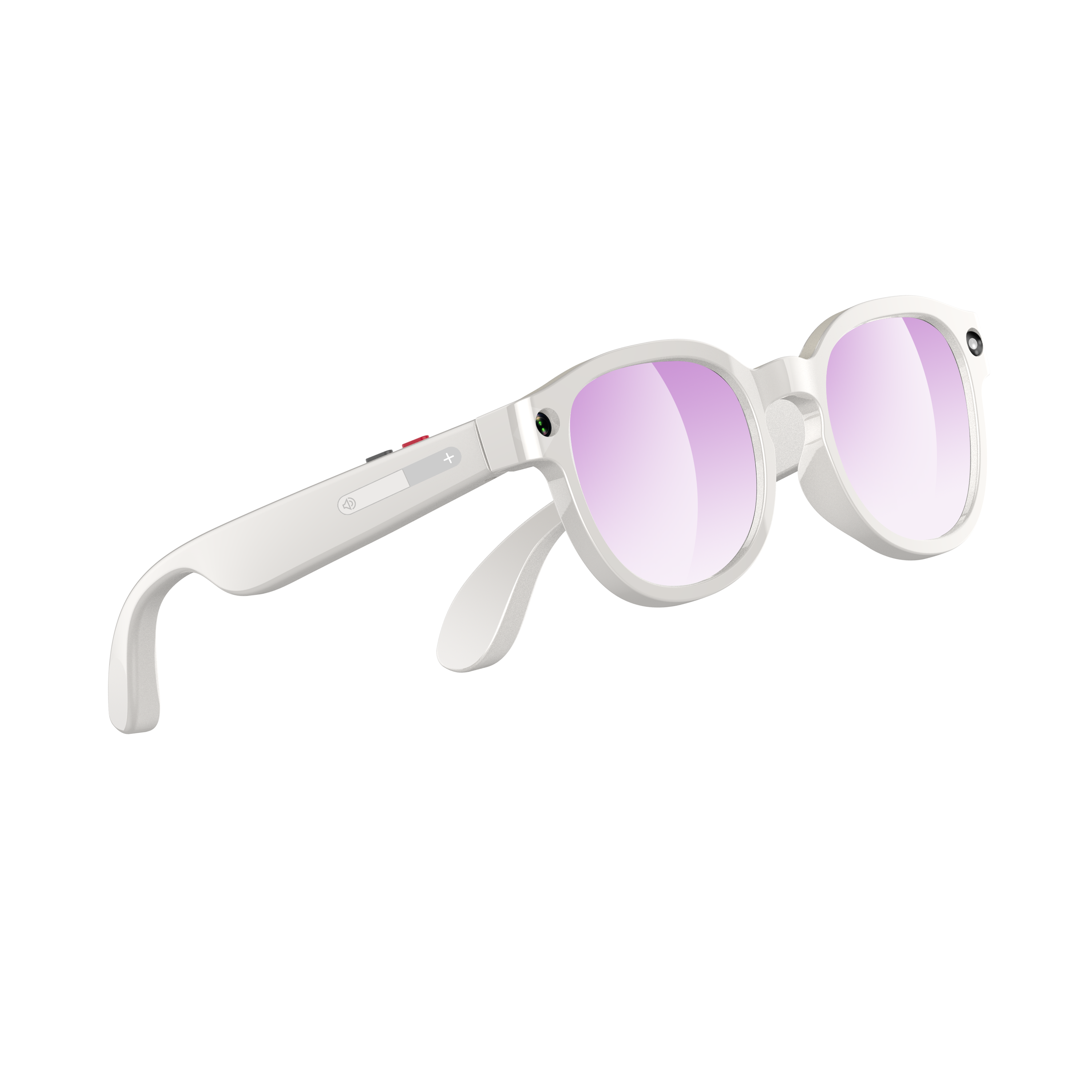

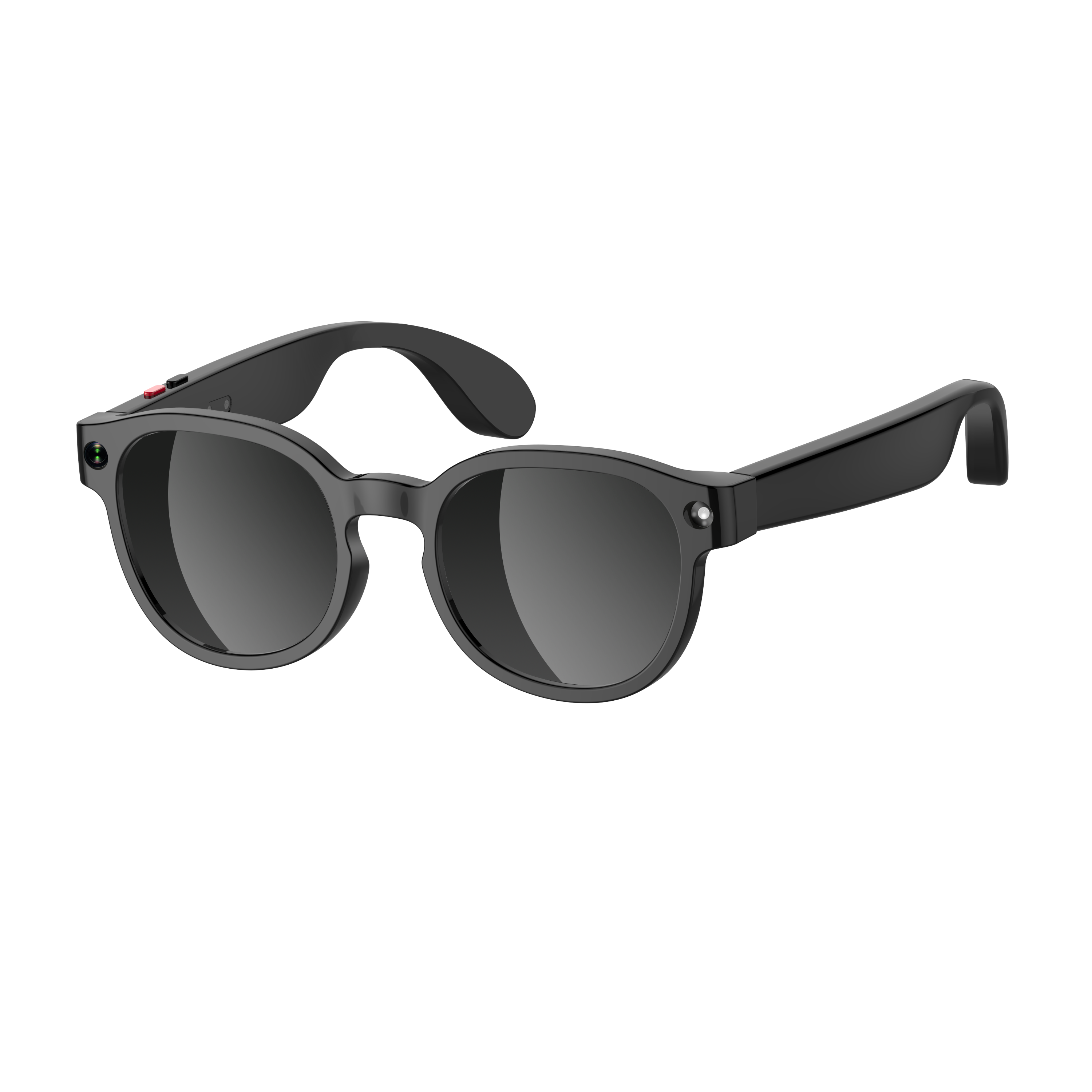

S1 AI Smart Camera Glasses Product Specification

1. Hardware Parameters

Item	Specification	Remarks
Main Control Chip	BK7258	-
Memory	512MB	-

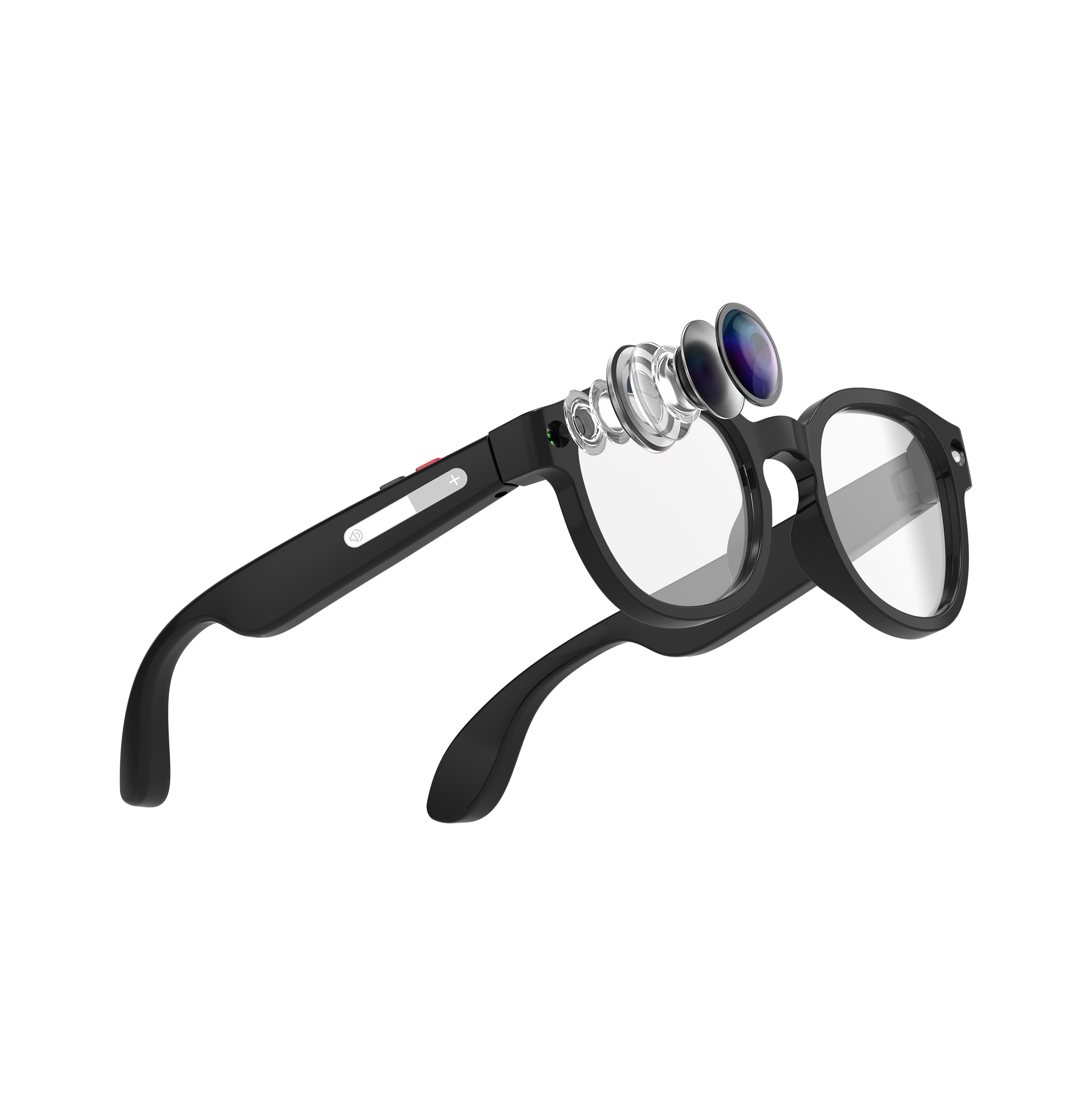

Camera	2MP (interpolated to 5MP)	-
Video Recording	1080P HD video with anti-shake	-
Microphone	Dual silicon microphones with noise reduction	-
Physical Buttons	2 physical buttons supported	-
Touch Button	Sliding touch control	-
Speaker	AAC speaker with adjustable high & low sound quality	-
Battery	270mAh, 3C fast charging supported	-
Photo/Video/Audio Transmission	Wi-Fi transmission	-
Anti-shake	Software anti-shake algorithm	-
Charging Method	Magnetic charging	-
Indicator Light	Camera shooting indicator	-
Charging Current	300mA with current path management	-
Full Charging Time	70 minutes	-
Music Playback Time	6~7 hours of continuous playback	-
Overseas AI Model	ChatGPT	-
APP Name	RDGlass	-
Voice Wake-up Word	Hi, Xiaoyi	Chinese only

2. Supported Translation Languages

Simplified Chinese, English, French, German, Spanish, Japanese, Italian, Hindi, Korean, Thai, Russian, Vietnamese, Malay, Indonesian, Greek, Czech, Romanian, Swedish, Dutch, Polish, Portuguese, Arabic, Persian, Turkish, Brazilian Portuguese

3. Basic Functions

Function	Detailed Description
Video Recording	1. 1080P video with anti-shake, auto segmented and saved to Nand Flash2. Video format: H.264 encoding, AVI container3. One-click recording4. Support APP & Wi-Fi transmission, built-in anti-shake algorithm
Camera	1. One-click shooting2. Software interpolated to 20MP, support Wi-Fi transmission
Audio Recording	1. One-click recording2. Audio format: WAV3. Support Wi-Fi transmission
OTA Upgrade	OTA upgrade via Bluetooth connected APP
Music Playback	Bluetooth music streaming, compatible with iOS, Android, HarmonyOS and other mainstream mobile systems
Voice Call	1. Short press the right physical button to answer incoming calls / end ongoing calls2. Long press for 3 seconds to reject incoming calls
AI Functions	1. AI Object Recognition2. AI Chat (ChatGPT)3. Translation (Microsoft Translation)
Prompt Tones	Power on/off tone, shooting tone, video recording tone

4. Button & Touch Functions

Control Area	Operation & Function
Front Right Button	Long press 2s: Power onLong press 5s: Power offShort press: Take photoDouble click: Start video recording; Short press again to stop recordingIncoming call: Short press to answer, long press 2s to hang up; During call: Short press to end call
Rear Right Button	Under Bluetooth connected state: Short press to wake up AI voice assistantDouble click: Quick AI object recognitionLong press: Start recording; Short press again to stop recording
Right Touch Area	Double tap: Play / Pause musicLong press: Switch to next trackTriple tap: Switch to previous track

5. Standard Accessories

Glasses case, cleaning cloth, glasses pouch, spectacle frame, 3 pairs of lenses in different colors (1 pair of blue light blocking lenses + 2 pairs of colored lenses), charging cable, user manual

6. Packaging & Dimension Specification (Model: AIMB-s1)

Item	Specification
Single Product Net Weight	0.167 kg
Total Package Weight (100 pcs)	17.5 kg
Single Product Dimension	171 * 89 * 55 mm
Carton Dimension (100 pcs)	45.5 * 35.5 * 57.5 cm
